Automate your Home and your Life with X-10 Powerhouse modules!!!   Give your home a lived-in look while you're away!   Simplify Holiday Lighting tasks !   Save Time, Save Energy !   Hundreds of Possiblities!   Simple Installation !   Why Wait ???



Ditek Surge Protection (click here)



PR511 Outdoor Motion Monitor SuperPak
The Outdoor Motion Monitor is completely weatherproof and can be used with incandescent or halogen bulbs up to 150W. The floodlights can also be turned on manually from an X10 transmitter. When it is turned on manually, the floodlights stay on and the motion detection is temporarily disabled until the floodlights are turned off from an X10 transmitter.

pr511_full_blue.gif - 26540 Bytes
The Outdoor Motion Monitors allows you to have lights and appliances turn on inside/outside your home on outside motion! This time of year the need for outdoor security becomes very high. A burglar or violent person can use the darkness to hide undetected as they sneak up on someone in your family or break into your home.
SC546A Chime Module
It chimes to let you know someone is outside.

floodcaught3.jpg - 8875 Bytes
Outdoor Motion Monitor SuperPak you'll get the most powerful motion detection devices around. The Outdoor Motion Monitor can turn on up to 8 different devices inside/outside your home so you'll not only scare off intruders with light, but notify people inside your home that something is lurking in your yard.
Other great add-ons for the Outdoor Motion Monitor:
For Lamps: LM465 Lamp Module
Hallway Lights:SW467 Wall Switch Modules

x10_pr511_out.gif - 29032 Bytes
What's included with the SuperPak
SC546A Remote Chime
Great Add-on!

The remote chime is the perfect add-on for the Outdoor Motion Monitor. It chimes to let you know someone is outside. It can also be used with the ActiveHome two way computer interface to chime on the hour.

remote_chime_s.gif - 2797 Bytes
For additional Chime Modules
Price $29.99









MT5224 Security Light Timer Kit

The Security Light timer kit is a low cost and effective way to protect your home. The FBI rates light and sound as the number one deterrent of burglaries! This system includes everything you need to get started and is fully X-10 Compatible.< /FONT>

Security Light TImer Kit
Kit Includes: MTT522 Mini-Timer: Controls up to four different lights or appliances by timed control (controls eight manually), and also has a built in s ecurity feature that varies the on/off time by thirty minutes so your home doesn't look like it's being controlled by a timer. Will dim and brighten lamps, and has ALL LIGHTS ON and ALL UNITS OFF buttons.

LM465 Lamp Module: Controls any incandescent lamp up to 300 watts.
AM466 Appliance Module: Controls appliances and fluorescent lights..








Powerflash POWERFLASH Burglar Alarm Interface (PF284)

Connects to an existing burglar alarm system and flashes lights connected to lamp modules and wall switch modules when the alarm trips. Triggered by a contact closure or low voltage input (6-18V AC, DC or audio). Connects to an existing alarm system and turns on lights when the alarm trips.

It has 3 modes of operation:

In Mode 1 the Burglar Alarm Interface will turn ON ALL lamp modules and wall switch modules set to its Housecode and will also turn ON any other modules set to its Unit Code, a stereo connected to an appliance module for example. All lamp modules and wall switch modules are left in the ON state when the alarm is de-activated but the modules set to the same Unit Code as the Burglar Alarm Interface will be turned OFF.

In Mode 2 the Burglar Alarm Interface will FLASH all lights connected to lamp modules or wall switch modules. All lamp and wall switch modules will be left in the ON state when the alarm is de-activated but appliance modules set to the same Housecode as the Burglar Alarm Interface will be turned OFF.

In Mode 3 the Burglar Alarm Interface will turn ON all modules set to the same Housecode and Unit Code as the interface. All modules set to the same Housecode and Unit Code as the Burglar Alarm Interface will be turned OFF when the alarm is de-activated. Mode 3 is the same as mode 1 except that the interface does not send the All Lights On code to turn on ALL lamp modules and wall switch modules set to the same Housecode as the interface.

The interface can be set to be triggered by either a low voltage input (6-18 volts AC, DC or audio) or a dry contact closure. You could also trigger it from an alarm which has an outlet for switching a 120V lamp by using this outlet to control a 120V relay, then use the contacts of the relay to trigger the interface (in the dry contact mode). WARNING - DO NOT CONNECT 120VAC DIRECTLY TO THE INPUT OF THE INTERFACE.

The Burglar Alarm Interface has a test button which allows you to activate it whether or not it is connected to an alarm system. The ALL OFF button allows you to turn off anything which has been turned on by the interface.

APPLICATIONS
Flash all the lights in your home when your existing burglar alarm is tripped.
Blast your stereo when your alarm trips.
Connect the Burglar Alarm Interface directly to a magnetic switch to turn on lights when a door or window opens, i.e. you don't have to own a burglar alarm system.
Trigger it from sensors such as a photo cell to turn on lights when it gets dark.
From a motion detector to turn on lights when someone enters a room.
From a microphone to turn on lights or appliances when a sound from an intruder is detected.
From a moisture sensor to sound an alarm if your basement is flooded.
From a garage door opener to turn on lights when you open your garage door, etc.

Some of these applications may require some additional components such as relays, etc. to interface to the Burglar Alarm Interface but virtually anything which gives, or can be made to give, either a contact closure or a low voltage output between 6 and 18 volts AC, DC or audio can be used to trigger the Burglar Alarm Interface.






RC5000 Wireless Control System
Compatibility: X-10 powerline carrier
Uses: Controls up to 8 lighting/appliance modules
Rating: Transceiver plugs into 120VAC power outlet
Colors: Ivory only
Description: The RC5000 is a complete and ready to use system. It consists of an eight unit, four function Wireless Remote Control (RT504) which transmits radio frequency (RF) signals to turn on or off a light or app liance plugged into the Transceiver/Appliance Module (RR501). So you can remotely turn on a light or appliance from inside or outside your home.

The Transceiver/Appliance Module however is much more than just an Appliance Module.

  • It can be turned on and off from the Wireless Remote Control.
  • It can be turned on and off from any other X-10 Controller, such as the Mini Timer.
  • It re-transmits, over your existing house wiring, any signals it receives from the Wireless Remote Control. This lets you control up to eight additional X-10 Modules from the Wireless Remote Control (assuming one of the other Modules is set to the sam e Unit Code as the Transceiver/Appliance Module).

You can also dim and brighten lights connected to X-10 Lamp Modules and Wall Switch Modules from the Wireless Remote Control.

The Wireless Remote Control and the Transceiver/Appliance Module have a "bank switch" which allows you to have 2 systems in use in the same house. The first set can control Modules set to 1 thru 8 and the second set can control Modules set to 9 thru 16.

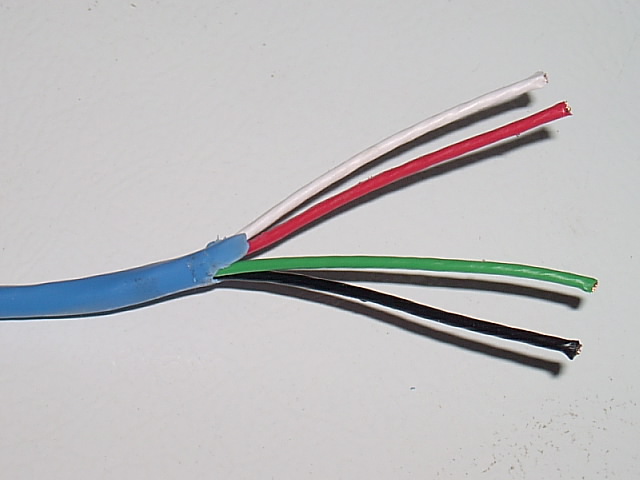

16/4 STR HTS CM/CL2 BLUE INDOOR SPEAKER WIRE.

16/4 wire Genesiss Speaker Wire 16/4

Price: $79.99 100 FT 16/4
Price: $39.99 50 FT 16/4

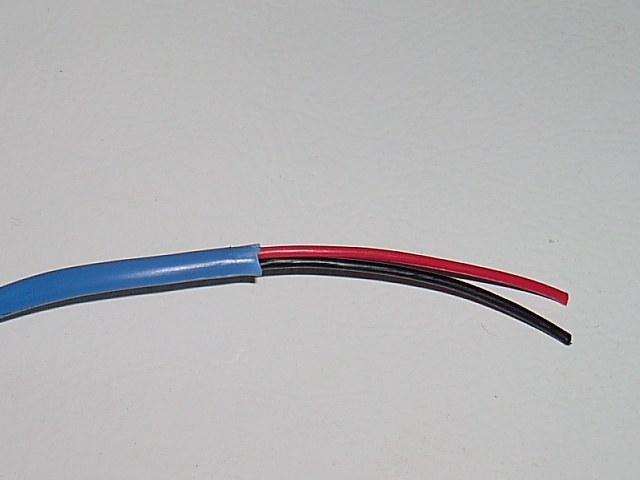

16/2 STR HTS CM/CL2 BLUE INDOOR SPEAKER WIRE.

16/2 wire Genesiss Speaker Wire 16/2

Price: $39.99 100 FT 16/2
Price: $19.99 50 FT 16/2









MC460 Mini Controller

Compatibility: X-10 powerline carrier
Uses: Controls up to 8 devices on a Housecode
Rating: Plugs into 120VAC power outlet
Colors: Ivory only
Description: The Mini Controller performs 6 functions: ON, OFF, BRIGHT, DIM, ALL LIGHTS ON and ALL UNITS OFF. It can be used from your bedside for example or from any convenient location in your home. It's so inexpen sive that you will want to have one in every room!

It has four "rocker" keys for one touch ease of use. These keys can control Modules set to Unit Codes 1 thru 4 or 5 thru 8 by sliding the 1-4/5-8 selector switch to the desired position.

The Mini Controller can dim and brighten lights connected to Lamp Modules and Wall Switch Modules.










SC503 Maxi Controller
Compatibility: X-10 powerline carrier
Uses: Controls 16 devices on a Housecode
Rating: Plugs into 120VAC power outlet
Colors: Simulated woodgrain with smoked dust cover
Description: The Maxi Controller Performs 6 functions: ON, OFF, BRIGHT, DIM, ALL LIGHTS ON and ALL UNITS OFF. It has sixteen number keys for independent control of up to 16 groups of X-10 Modules.

The Maxi Controller has "two key action". This means that to turn a Module on, you first press and release the number button corresponding to the Unit Code set on the Module you want to turn on. You then press and release the ON button. This two key action provides an added feature. It allows "group control" and group dimming/brightening.

Group Control: Press and release buttons 1, 2 and 3, etc. in succession. Then press the ON button. Modules set to 1, 2 and 3, etc. will all turn on at the same time.

Group Dimming: Most brands of dimmer allow only individual manual control. The Maxi Controller not only allows you to remotely dim lights connected to X-10 Lamp Modules and Wall Switch Modules but al so allows you to dim and brighten them in groups! Press buttons 1, 2 and 3, etc. in succession. Then press the dim button to dim them all at the same time. The same procedure is used to brighten lights. X-10 dimmers are the only dimmers that have this feature.










LM465 Lamp Module

The LM465 can be turned on/off, and dimmed/brightened by remote control with any X-10 compatible controller.

The Lamp Module responds to All Lights On from any Controller set to its Housecode. This allows you to turn on ALL lamps connected to Lamp Modules at the touch of a button if you hear a strange noise at night, regardless of what Unit Code the Lamp Module is set to.

The Lamp Module also responds to All Units Off from any Controller set to its Housecode. This allows you to turn off ALL lights conn ected to Lamp Modules at the touch of a button when you go to bed, regardless of what Unit Code the Lamp Module is set to.

The Lamp Module has a feature called "local control". This feature enables you, at any time, to turn on the lamp plugged into the Lamp Module simply by turning the lamp's power switch off then on again. For lamps with 3-way bulbs, you may have to rotate the switch a few times before the lamp turns on. You must always leave the lamp's switch in the on po sition to control the Lamp Module remotely, but this local on feature means you don't have to go to where the Controller is located to turn the lamp on.










AM466 & AM486 Appliance Modules

Controls appliances and higher wattage lights. AM466: 3-pin AM486: 2 Pin

The AM486 and the AM466 are essentially the same except the AM486 is a 2-pin polarized model and the AM466 is a 3-pin model which includes the ground pin. The AM486 & AM466 are rated for three types of loads:

15A resistive. This is the equivalent of about 1800 Watts so it will control resistive type loads such as coffee pots, crock pots, toaster ovens, portable heaters, etc.

Warning: Extreme care should be taken when u sing the Appliance Module to control portable heaters as a fire could result if the heater were turned on by remote control while clothing was draped nearby.

1/3 HP for motor lo ads. Sufficient to handle the motor load in appliances such as portable fans and window air conditioners.

500 Watts for lamps. Although the Appliance Module is rated for 1800 Watts for resistive loads, it is limited to 500 Watts for incandescent lamps because of the "inrush" current when you turn on a cold lamp. This momentary inrush of current can be up to 6 times higher than the normal operating load.

The Appliance Module can be used for any kind of lamp including fluorescent lamps but cannot dim lamps.

The Appliance Module does not respond to the "All Lights On" code but does respond to the "All Units Off" code that is on most controllers.

The Appliance Module's "local control" feature lets you, at any time, turn on the appliance plugged into the Appliance Module simply by turning the appliance's power switch off then on again. You must always leave the power switch in the on position to control the Appliance Module remotely, but this handy local on feature means you don't have to go to where the Controller is located to turn the lamp or appliance on. This feature does not work with "instant on" and remote controlle d TVs.










SL575 Screw-in Lamp Module

The SL575 Screw-in Dimmer Module screws into a standard light socket and provides re mote control of a lamp that is screwed into it.

The SL575 Screw-in Dimmer Module receives signals from any X-10 Timer or Remote Control over your existing house wiring, and no special wiring is needed. It can control any incandescent lamp up to 150 watts and you can also dim the lamp from any X-10 Dimming Remote Control.

The SL575 Screw-in Dimmer Module responds to All L ights On from any Controller set to its Housecode. This allows you to turn on ALL lamps connected to Screw-in Dimmer Module at the touch of a button if you hear a strange noise at night, regardless of what Unit Code the Screw-in Dimmer Module is set to.

The Screw-in Dimmer Module also responds to All Units Off from any Controller set to its Housecode. This allows you to turn off ALL lights connected to Screw-in Dimmer Module at the touch of a button when you go to bed, regardless of what Unit Code the Screw-in Dimmer Module is set to.










WS467 & WS477 Wall Switch Modules

The WS467 Wall Switch Module can be turned on/off by manually pressing the button on the swi tch face. It can also be turned on/off and dimmed/brightened by remote control with any X-10 compatible controller.

The WS477 is for lights that are controlled by more then on switch. You must use the CD2777 companion switch for each additional switch on the circuit.

The WS467 responds to All Lights On from any Controll er set to its Housecode. This allows you to turn on ALL lights connected to Wall Switch Modules at the touch of a button if you hear a strange noise at night, regardless of what Unit Code the Wall Switch Module is set to.

The WS467 a lso responds to All Units Off from any Controller set to its Housecode. This allows you to turn off ALL lights connected to Wall Switch Modules at the touch of a button when you go to bed, regardless of what Unit Code the Wall Switch Module is set to.

The WS467 has a push button for manual control which allows you to manually turn the light connected to it ON or OFF at the touch of a button. You can always control the Module remotely whether or not you have turned it on or off locall y.

There is a slide switch located under the local control push button. This switch is a U.L. requirement and is used to turn the power off when changing a light bulb.

The WS467 has a "minimum" rating of 60 watts. If you try to control a fixture with a light bulb rated less than 60 watts, the light bulb may glow dimly when the Wall Switch Module is turned off.










HD243 & HD245 Heavy Duty Appliance Modules

The HD243 Appliance Module plugs into a regular 220V 15A or 20A outlet and will control any 220V appliance rated at 15A or less.

The HD245 Appliance Module plugs into a regular 220V 20A outlet and will control any 220V appliance rated at 20A or l ess.

Both Modules are designed to work on single split phase 110/220V or 120/240V systems. This is the kind of wiring system found in most houses. The HD243/245 will not work on 3 phase systems which are sometimes found in apartments.

The HD243 & HD245 be used for larger appliances such as air conditioners, water heaters, and Jacuzzi's.

For safety, the Heavy Duty Appliance Module does not respond to the "All Lights On" code but does respond to the "All Units Off" code.

The Heavy Duty Appliance Module does not have local control.










SR227 Split Receptacle Module

The SR227 replaces your existing wall receptacle. It has two outlets, the top outlet is controlled an d works just like an Appliance Module. The bottom outlet is on all the time and works just like a regular outlet.

The SR 227 will control anything that you would normally plug into a regular 15A wall receptacle.

Warning: Extreme care should be taken when using the Split Receptacle Module to control portable heaters as a fire could result if the heater were turned on by remote control while clothing is draped nearby.

The Split Receptacle Module can be used for any kind of lamp including fluorescent lamps but cannot dim lamps.

The Split Receptacl e Module does not respond to the "All Lights On" code but does respond to the "All Units Off" code.

The Split Receptacle Module's "local control" feature lets you, at any time, turn on the appliance plug ged into the Split Receptacle Module's top outlet simply by turning the appliance's power switch off then on again. You must always leave the power switch in the on position to control the Split Receptacle Module remotely, but this handy local on feature means you don't have to go to where the Controller is located to turn the lamp or appliance on. This feature does not work with "instant on" and remote controlled TVs.

The Split Receptacle Module is packaged complete with a Decora™ style wall plate, mounting screws and wire nuts.










UM506 Universal Module

Controls low voltage devices & operates as a beeper.

The Universal Module plugs into a 120VAC electrical outlet and contains an isolated contact relay and a piezo sounder (beeper). It can be set to operate as a beeper only, as an isolated contract relay only, or both. It can be set for m omentary or continuous operation for the sounder and/or isolated contact relay.

The isolated contact relay contacts are rated for 5A at 24VDC. Higher voltages can be switched (15A resistive at 120VAC, 500W for incandescent lamp loads , 1/3 HP Inductive for motors) but care must be taken to ensure that hazardous voltages are not present at the exposed screw terminals.

When set for continuous operation the relay contacts close and/or the module beeps continuously w hen an "on" command is received. When an "off" command is received, the relay contacts open and/or the beeps stop.

When set for momentary operation the relay contacts close and/or the beeper gives three or four b eeps when an "on" command is received. The relay contacts then open automatically after about 1/2 second and/or the beeper stops automatically after three or four beeps. In this mode, off commands are ignored. The module has a Test (On) button a nd a Unit Off button.
